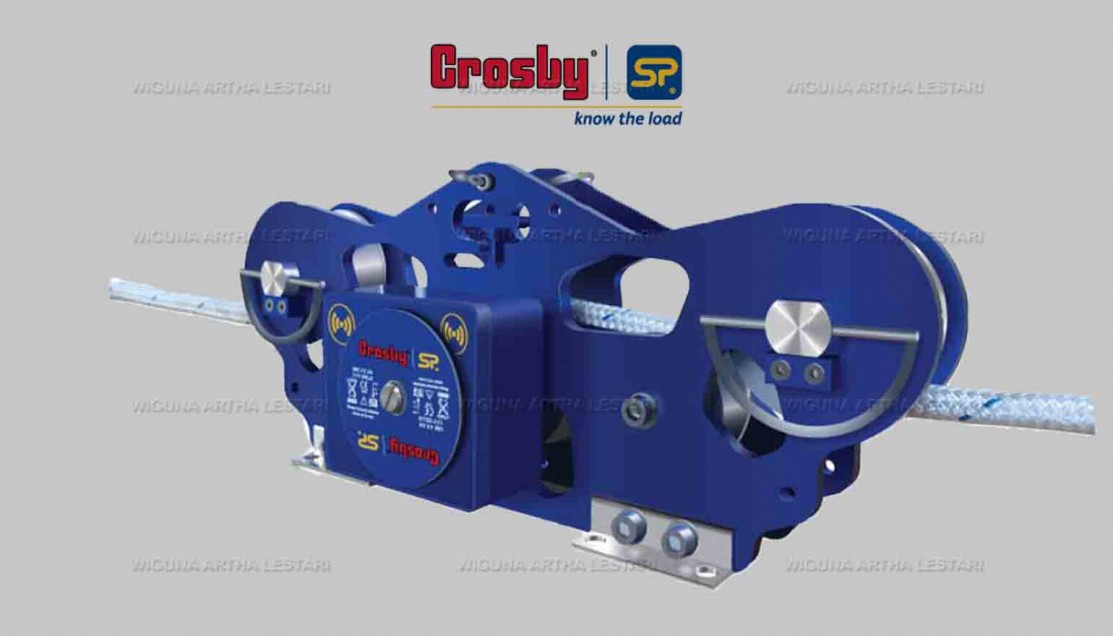

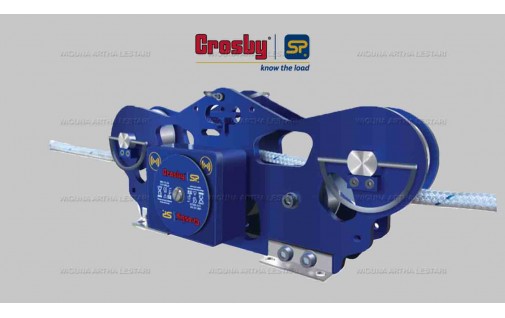

    CABLESAFE

    Crosby - Straightpoint CableSafe compatible with a wide range of rope and electrical cable diameters (4-30mm) at range 100m / 328ft using bluetooth connection. Allow the user to monitor tension with exceedingly high levels of accuracy to ensure that is being pulled at a safe tension level.

    Ideal for the following applications:

    • Measure tension when pulling electrical cables.
    • Measure tension on synthetic rope.
    • Measure tension at cell phone tower installation.

    Product Details

    Wireless Approvals
    sp wireless conformity logos

    Federal Communications Commission
        FCC: VHARA24
    Industry Canada
        IC: 7224A-RA24
    Japan Certification
        ID: 205-170296
    Korea Certification
        ID:R-CRM-1ME-RA24

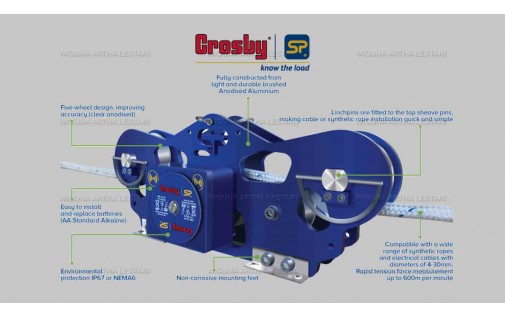

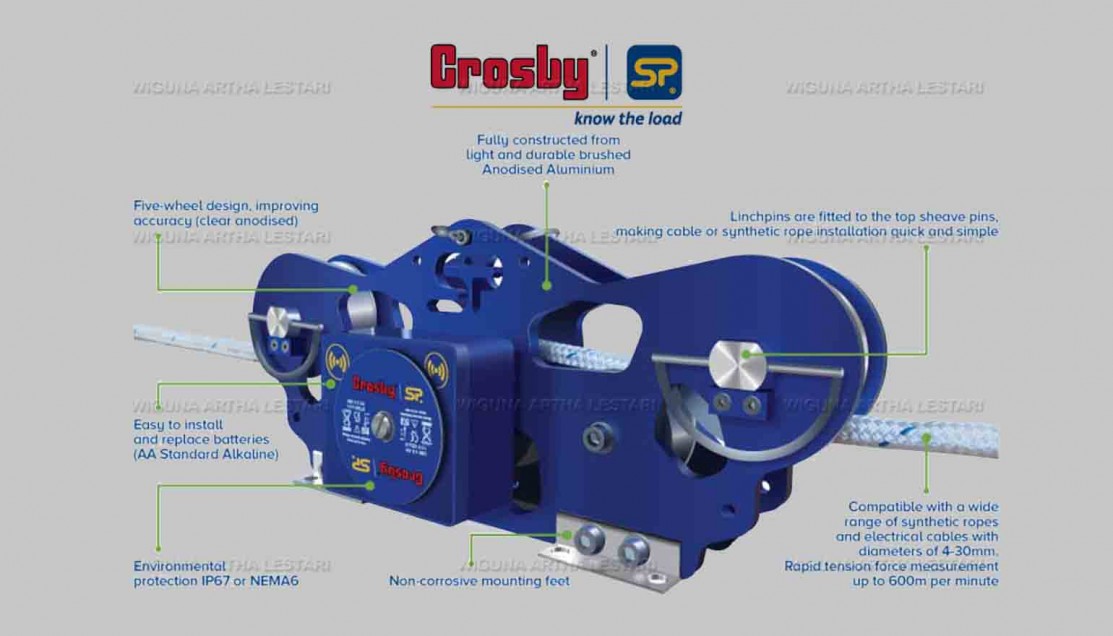

    FEATURES AND BENEFITS
    • Simple to use and set up
    • Remote monitoring using smart phone via Bluetooth
    • Rapid tension force measurement - Up to 600m or 1968ft per minute
    • Able to be used in all weather and air quality conditions
    • Easy to install and replace batteries (4 x AA standard Alkaline)
    • Fully constructed from aerospace-grade aluminium with anodised finish
    • Five wheel design improving accuracy
    • Blue anodised side plates
    • Linchpins are fitted to the top sheave pins making wire rope installation quick and simple
    • Maintenance-free heavy duty bearings
    • Compatible with a wide range of synthetic rope/electrical cable diameters – 4-30mm or 5/32"- 1 3/16"
    • Design validated by F.E.A.
    • IP67 ingress protection or NEMA6 – heavy protection against dust and rain
    • 2-year warranty
    APPLICATIONS
    • Fibre-optic cable pulling using turret winches
    • Water gates for dams
    • Offshore rescue and retrieval
    • Capstan rope/cable winding
    • Broadcast and telecommunications
    • Erecting towers (maintaining structural capacity)
    • Service and maintenance of cell towers



    For more information contact us

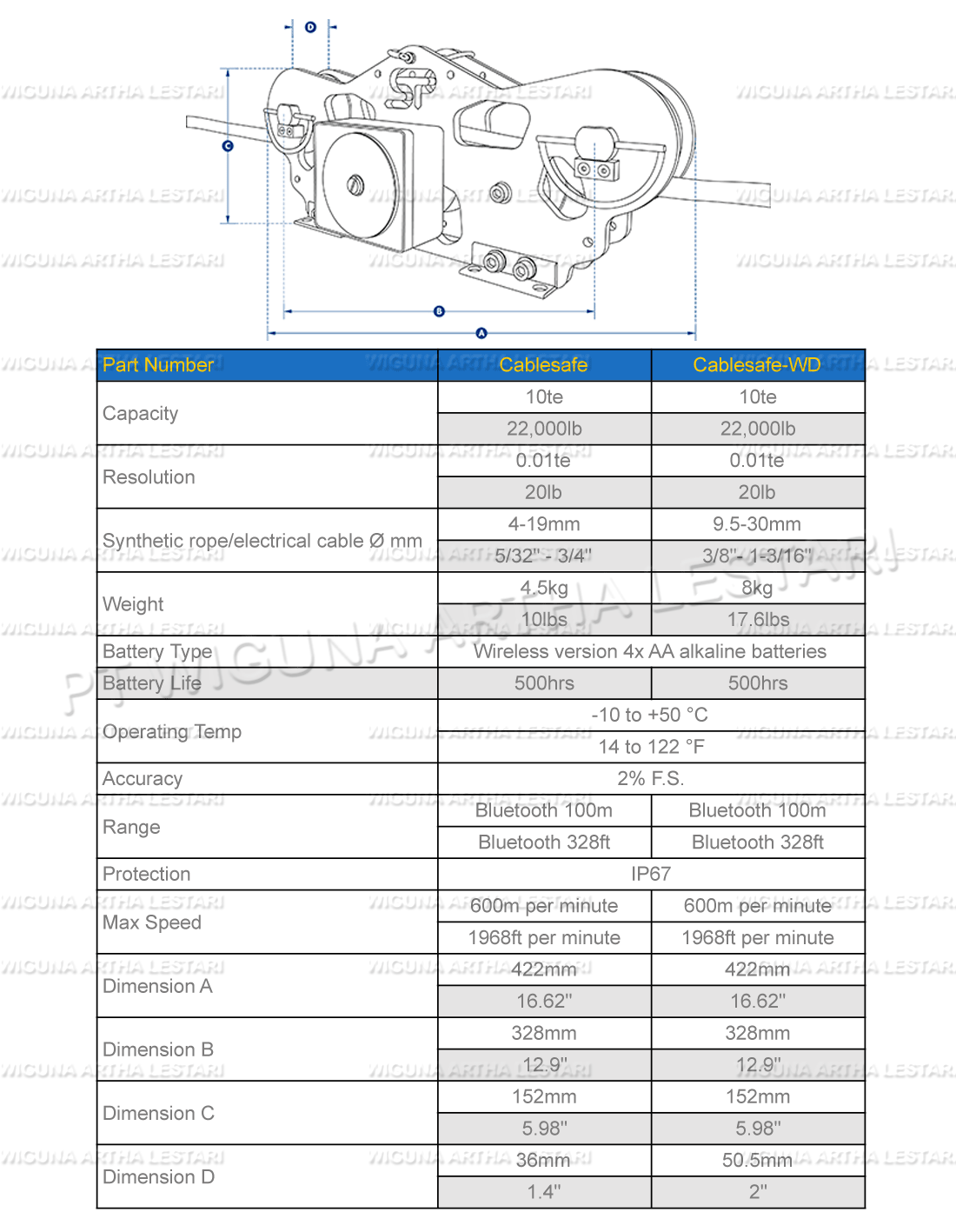

    Specification

    Specification
