FEATURE & BENEFIT
- Exclusive E-Z opening guards, no bolts to pull out and lose. Feature gives fastest possible exposure of sheave cluster for quick reeving.
- Extremely short overall length, extra weight, excellent balance for fast non-wobbling falls.
- Roller thrust bearing in hook.
- Duplex hook for easy elevator operation, locks in eight positions.
- Also available with Rod Hook Clevis.
- Completely streamlined, no projections.
- McKissick Roll-Forged, flame hardened sheaves, grooved to API profile fo proper Wireline size. Contact Crosby for additional Wireline sizes.
- Separate lubrication channel to each sheave.
- Double row, pre-adjusted tapered bearings with seals.
- McKissick Split-Nut® hook parts precision machined and individually fitted fo maximum performance.
- Manufactured to API-8C specifications
- 35 ton Capacity Rod Hook Clevis available.
- Lock Arms with Self Retaining Bolts.
- All sizes are RFID EQUIPPED.

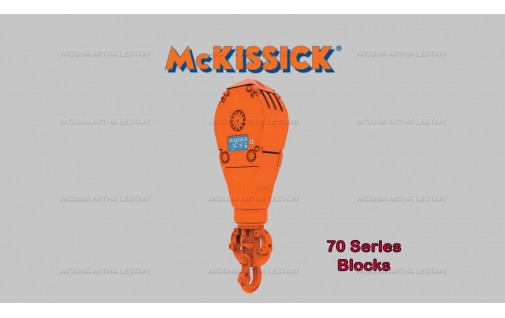

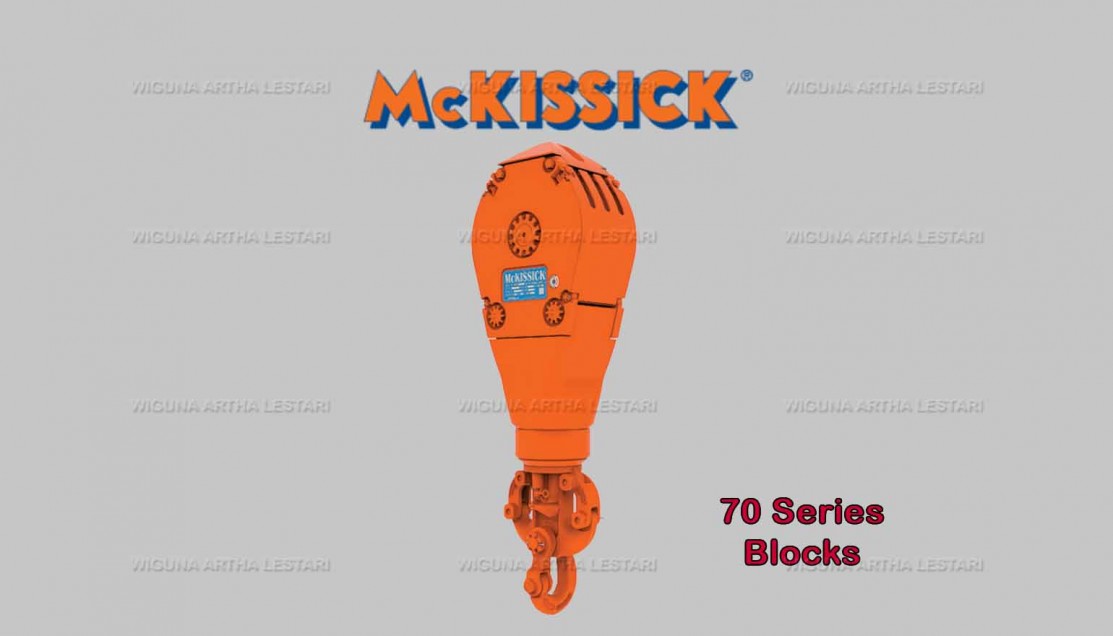

- The 70 Series has a spring loaded hook that is better for heavy usage and larger depths. Tends to last longer since the shock loads are somewhat absorbed.

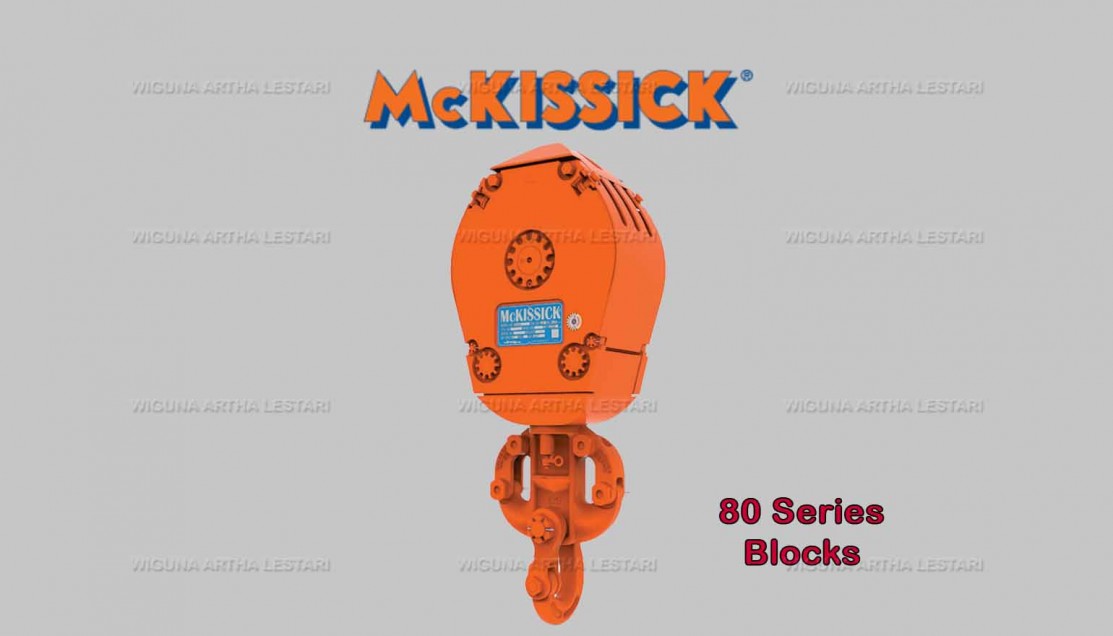

- The 80 Series has no spring loaded hook and is better for shallow depths and rework.
