FEATURES AND BENEFITS

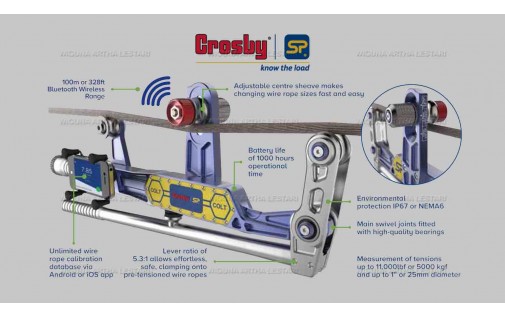

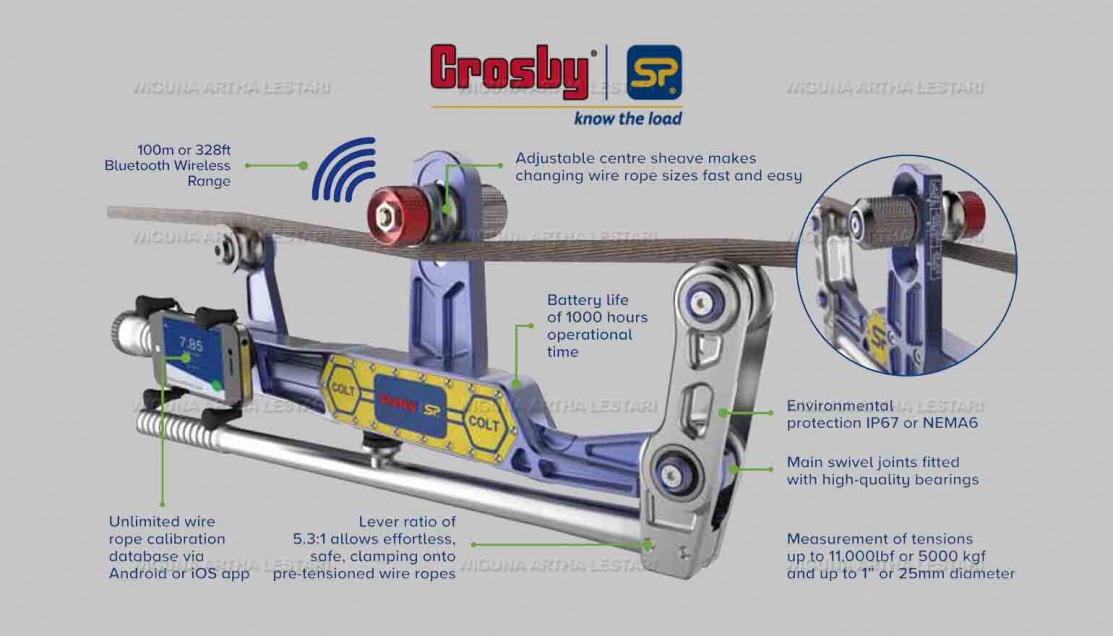

- Unlimited wire rope calibration database via Android or iOS app
- Main swivel joints fitted with high-quality bearings
- Lever ratio of 5.3:1 allows effortless, safe, clamping onto pre-tensioned wire ropes
- Wireless Bluetooth 4.2 enabling operator to stand a safe distance away — up to 100 metres or 328 feet
- Quick intuitive adjustable centre sheave makes changing wire rope sizes fast and easy
- No easily broken external antennae
- High waterproof resistant design IP67 or NEMA6 for all weather use
- Massive battery life of 1000 hrs operational time
- Have more library of wire rope diameters and constructions
- 2 year warranty
WIRE ROPE MODE
- Records GPS coordinates
- Logs the local temperature and windspeed from local NOAA
- Multi anchor data logging with camera mode
ELEVATOR MODE
- Car weighing – measure tension on each cable and automatically calculate car weight
- Car balancing – measure and calculate balance of load across up to 10 cables
APPLICATION
- Guy wire maintenance on cell towers, bridges, flare stacks, antennas and masts.
- Elevator car weighing and wire rope balancing.
- Guy wire Tower Plumb and Tension.
- EHS guy wire, Turnbuckle tensioner.
- Wire rope Installations, comparing, equalising and measuring.
- Architectural wire rope installations.
- Median cable barrier tensioning.
- Utility cable overhead line monitoring.
- Zip lines and assault course testing.
- Fall arrest systems.
- Metro, tram and rail transit electric wires, and catenary testing.
- Ski Lifts.
- Wire rope tie downs on vessels (using Tirfor).
- Testing tension of ship mast wire ropes.
- Tensioned trellis systems.
- Measuring Line Sag.
SUPPLIED WITH THE FOLLOWING AS STANDARD
- Proof test certificate
- Operator Manual
- Carry/Storage Case
