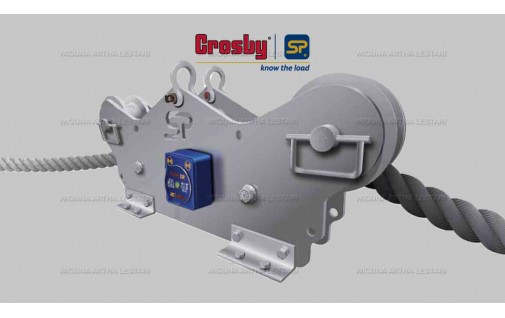

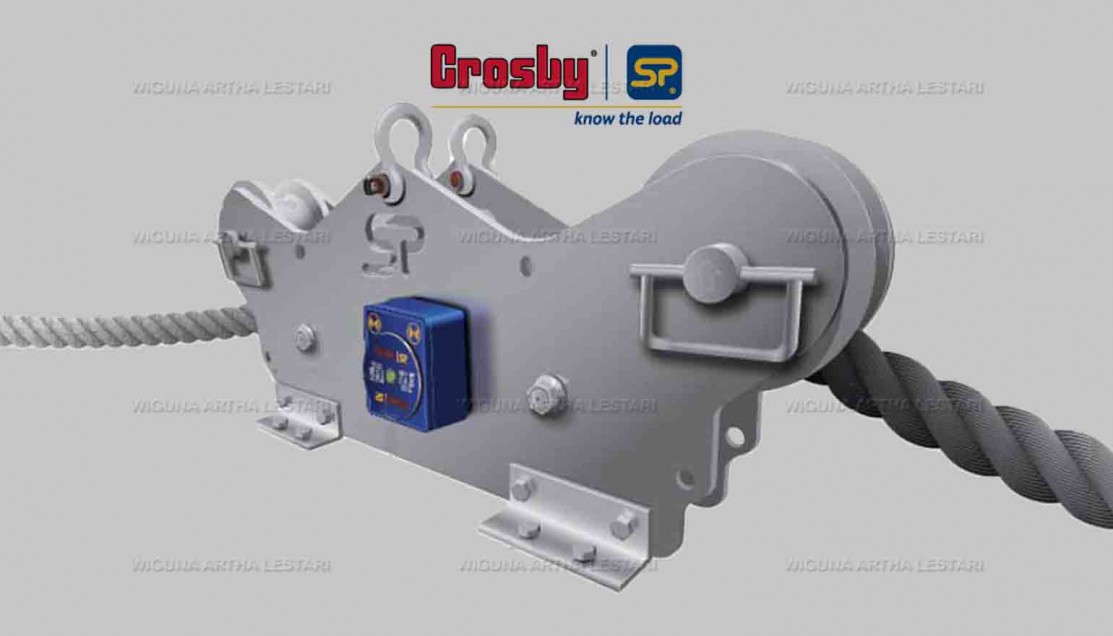

RUNNING LINE DYNAMOMETER - TIMH

Crosby - Straightpoint Wireless Running Track Tensiometer or RLTM was built with dock, marine, offshore, towing and rescue applications in mind. This is especially useful when there are no anchors or dead ends in the line for attaching SP Radiolink or Loadlink digital dynamometers. It measures tension forces at speeds up to 20m/min or 65ft/min with wire rope configurations up to 150 tons. TIMH is made of marine grade stainless steel.

Product Details

Wireless Approvals

Federal Communications Commission
    FCC: VHARA24
Industry Canada
    IC: 7224A-RA24
Japan Certification
    ID: 205-170296
Korea Certification
    ID: R-CRM-1ME-RA24

TWO VERSION OF THE TIMH ARE AVAILABLE

Long range 2.4GHz version providing industry leading wireless range of 700m or 2300ft.
Bluetooth output ranges up to 100m or 328ft.

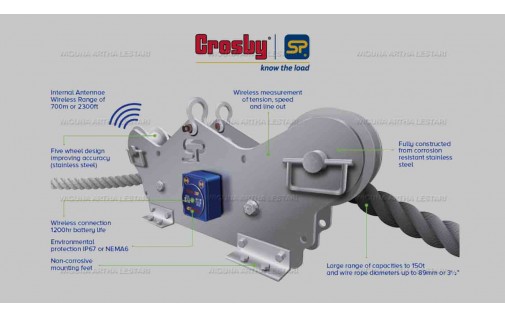

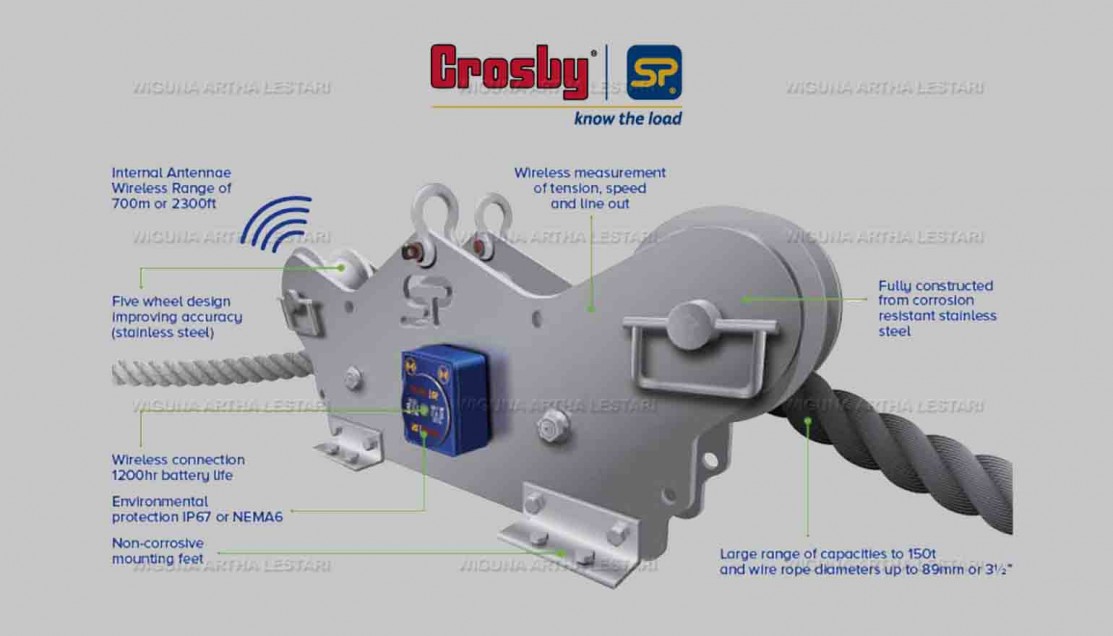

FEATURES AND BENEFITS

Measure tension, line speed and distance
Five-wheel design improving accuracy
Cabled or wireless options
Fully constructed from corrosion-resistant stainless steel
IP67 or NEMA6 Loadpin
Industry leading battery life of 1200hrs (wireless)
Maintenance free heavy duty bushes
Large range of capacities to 150t and wire rope diameters up to 89mm or 3½”
Options for lineout and speed available
Software available to data log and monitor or analogue outputs
Design validated by F.E.A.
Bluetooth option is available and is supplied with a free HHP App for iOS and Android
2 year warranty

APPLICATIONS

Dockside
Marine
Offshore
Towage and Salvage
Single point mooring
Spread mooring
Tenson mooring
Dynamic positioning
Wireline Services

SUPPLIED WITH THE FOLLOWING AS STANDARD

Proof test certificate
Operator Manual
Carry/Storage Crate
